Cee-sections
Another very common and popular part, cee-sections are used in many industries that call for a lighter weight and gauge structural component where a I-beam or T-beam might be too heavy. Also, their shape makes them ideal for use as channels, cable trays, fencing and railings, reinforcements, brackets, etc.

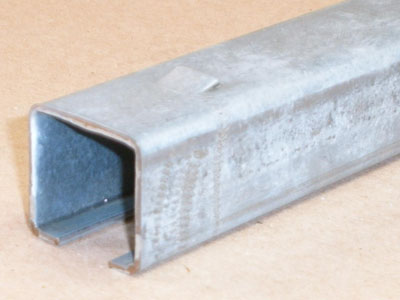

15 Gauge Roll-formed Cee-section Galvanized Steel
1.2" x 1.3", 15 gauge (0.071") roll formed C-section galvanized. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. End notches are included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
15 Gauge Roll-formed Cee-section Stainless Steel
1.2" x 1.3", 15 gauge (0.071") roll formed C-section in stainless steel. This profile is formed with highly accurate and consistent dimensions. The stainless material provides corrosion protection. End notches are included with no secondary operation. Standard steel grades are processed, usually in annealed material. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
16 Gauge Roll-formed Floor Support
1" x 1", 16 gauge (0.060") roll formed floor support in cold rolled steel. This profile is formed with highly accurate and consistent dimensions. The cold rolled finish is later powder coated to provide corrosion protection. End notches may be included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

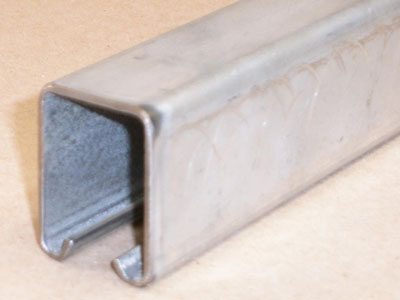

14 Gauge Roll-formed Fence Top Rail
1.3" x 1.6", 14 gauge roll formed fence top rail. This profile is either formed in pre-coated material such as galvanized, or hot rolled pickled and oiled and then post-coated with a dipping process. The top rail is the uppermost horizontal member of a unit of fence framing. Common lengths are 21 feet. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

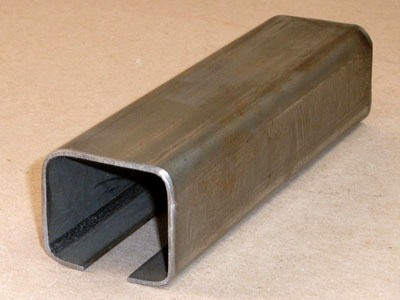

14 Gauge Roll-formed Fence Post
1.6" x 1.9", 14 gauge roll formed fence post. This profile is either formed in pre-coated material such as galvanized, or hot rolled pickled and oiled and then post-coated with a dipping process. The post is the recurring vertical member of a unit of fence framing. Common lengths are 10 feet. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

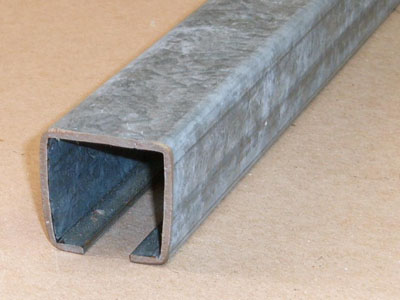

12 Gauge Roll-formed Galvanized Cee-section
1.5" x 1.6", 12 gauge roll formed galvanized C-section. The galvanized process inhibits rust and protects the channel. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. Slots and end notches can be included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

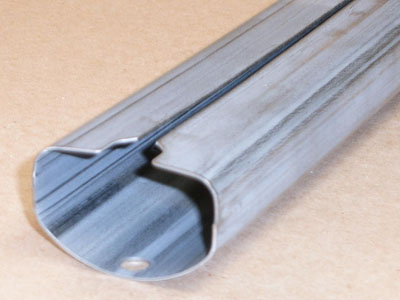

18 Gauge Roll-formed Receiver Arm
1.3" x 2", 18 gauge roll formed receiver arm. The galvanized process inhibits rust and protects the channel. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. Slots and end notches can be included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

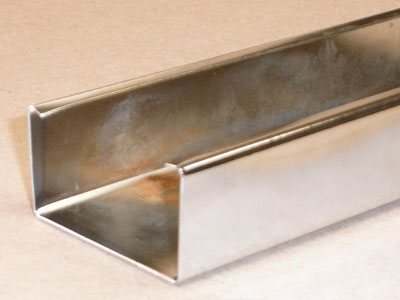

24 Gauge Roll-formed Stud
1.3" x 2.5", 24 gauge roll formed stud. C-studs are typically held in place by U-studs which sit on the floor and ceiling of a project. A C-stud will sit at the end of each U-stud, and at predetermined intervals along the wall. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

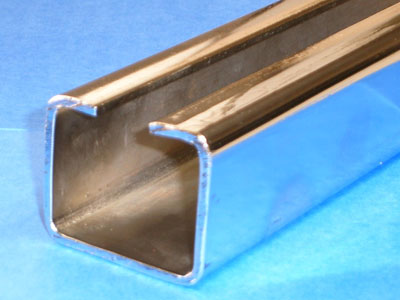

11 Gauge Roll-formed Fence Post
1.7" x 2.3", 11 gauge roll formed fence post. This profile is either formed in pre-coated material such as galvanized, or hot rolled pickled and oiled and then post-coated with a dipping process. The post is the recurring vertical member of a unit of fence framing. Common lengths are 10 feet. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

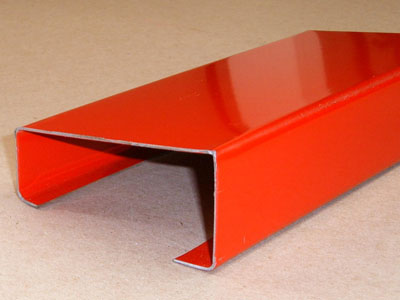

16 Gauge Roll-formed Painted Reel Bat
1.9" x 4.3", 16 gauge roll formed painted reel bat. This profile is formed in pre-painted material to match an agricultural equipment color scheme. The profile is combined with other mating post to make a finished assembly. Common lengths are 14 feet. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

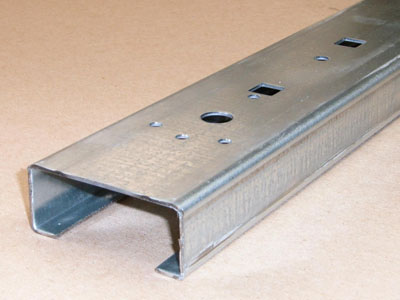

14 Gauge Roll-formed Galvanized Door Track
1.1" x 2.8", 14 gauge roll formed galvanized door track. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. Holes and notches are included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

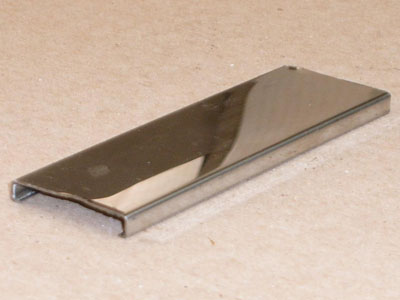

Stainless Roll-formed Appliance Molding
0.2" x 1.3", roll formed appliance molding C-section in stainless steel. This profile is formed with highly accurate and consistent dimensions. The stainless material provides corrosion protection. End notches are included with no secondary operation. Standard steel grades are processed usually in annealed condition. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

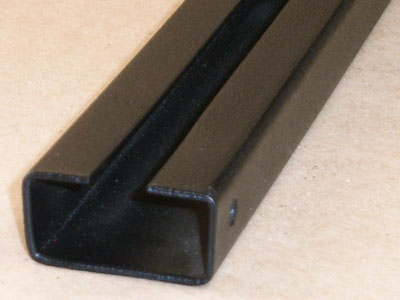

14 Gauge Roll-formed and Powder Coated Profile
0.8" x 1.5", 14 gauge roll formed and powder coated profile. The base material for this profile is hot rolled, pickled and oiled steel. After forming it is powder coated assembled with other components. This profile is formed with highly accurate and consistent dimensions. The cold rolled finish is later powder coated to provide corrosion protection. End holes may be included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

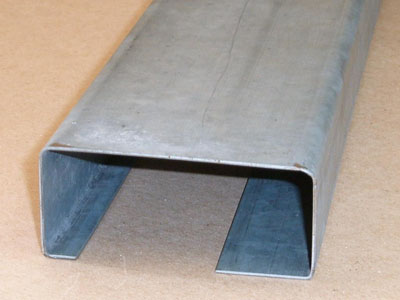

14 Gauge Roll-formed Door Frame Member
1.5" x 3.5", 14 gauge roll formed door frame member. This profile is formed with highly accurate and consistent dimensions. The hot dipped galvanized coating provides corrosion protection. Holes and notches are included with no secondary operation. Standard steel grades are processed, from commercial quality to grade 50. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
MP Metals specializes is roll-forming custom parts. Nothing is stock.
As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
