Rings
Rings are rolled and bent into circular patterns from angles, channels and special shapes. They often are used to join or seal two other parts, such as drums and lids. MP Metals can also weld the ring ends together and finish the seam for a nearly invisible finish for applications such as decorative rings and bezels. Punching, notching and adding latches or connectors are supplemental operations that MP Metals can efficiently perform.

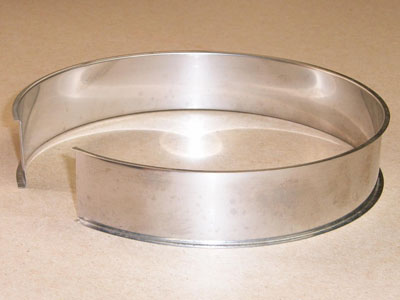

Stainless Roll-formed Flywheel Retainer Ring
5.5" diameter x 1.25" wide, stainless roll formed flywheel retainer ring. This ring is roll formed in 0.008" type 304 stainless steel, such that the finished part is free of foreign material to pass a copper sulfate solution test and meet cleanliness criteria in ASTM A380. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
Roll-formed Stainless Meter Ring
7" diameter x 0.75" wide, roll formed stainless meter ring. This ring is roll formed in 0.019" stainless steel, such that the finished part is free of foreign material. Notches and dimples are included to assist with mounting and clamping. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

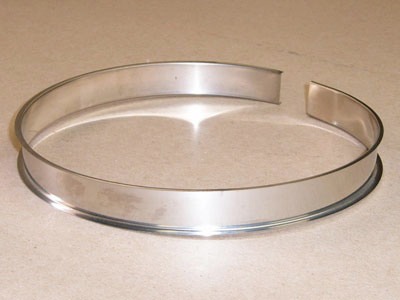

Stainless Roll-formed Flywheel Retainer Ring
6.8" diameter, stainless roll formed flywheel retainer ring. This ring is roll formed in 0.008" type 304 stainless steel, such that the finished part is free of foreign material to pass a copper sulfate solution test and meet cleanliness criteria in ASTM A380. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
16 Gauge Roll-formed Drum Ring
23" diameter, 16 gauge roll formed drum ring. This ring is roll formed in hot dipped galvanized steel for corrosion protection. After forming the profile, the shape is rolled into a ring that matches the diameter of a barrel or drum and latching brackets are attached. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

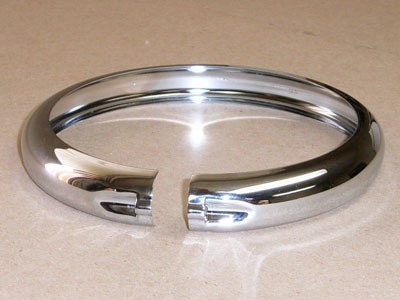

25 Roll-formed Lighting Bezel A
5" diameter, 25 roll formed lighting bezel. This ring is roll formed in 0.021" cold rolled steel and then polished and chrome plated. End holes are included for fastener connections. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

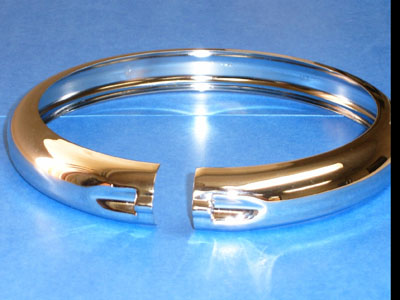

25 Roll-formed Lighting Bezel B
6" diameter, 25 roll formed lighting bezel. This ring is roll formed in 0.021" cold rolled steel and then polished and chrome plated. End holes are included for fastener connections. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

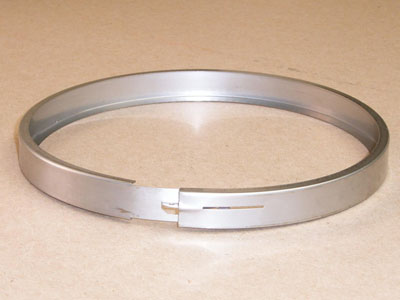

Roll-formed Stainless Pocket Ring
7" diameter x 0.75" wide, roll formed stainless pocket ring. This ring is roll formed in 0.019" stainless steel, such that the finished part is free of foreign material. Notches and tabs are included to assist with mounting and clamping. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

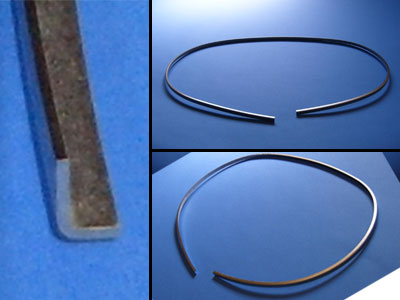

Roll-formed Oval-shaped L-channel Metal Gasket
18 gauge oval shaped L-channel metal gasket in aluminized steel in various lengths. This ring is roll formed in aluminized steel for corrosion protection. After forming the profile, the shape is rolled into a ring that matches the diameter of a barrel or drum. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

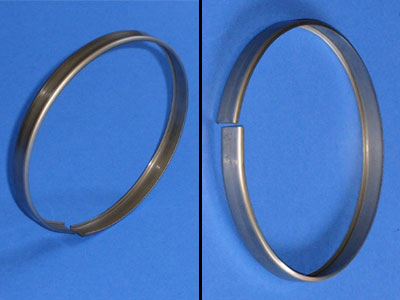

Roll-formed Stainless Steel Ring
5" inch diameter 22 gauge stainless steel ring. This ring is roll formed in 0.034" stainless steel, such that the finished part is free of foreign material. Notches and and tabs are added later to assist with mounting and clamping. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
Arc Shaped 16 Gauge Cold-rolled Steel Channel
Arc-shaped 16 gauge cold rolled steel channel. This ring is roll formed in 0.060" cold roll steel and later powder coated for corrosion protection. End tabs are added later to assist with mounting and clamping. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
Stainless Steel Retainer Ring
0.008" x 0.8" wide stainless steel retainer ring. This ring is roll formed in 0.008" type 304 stainless steel, such that the finished part is free of foreign material to pass a copper sulfate solution test and meet cleanliness criteria in ASTM A380. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
26 Gauge Cold-rolled Steel Bezel
26 gauge cold rolled steel bezel. 4.5" diameter, this ring is roll formed in 0.020" cold rolled steel and then polished and chrome plated. End holes are included for fastener connections. A range of other diameters is possible with the same tooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
MP Metals specializes is roll-forming custom parts. Nothing is stock.
As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
