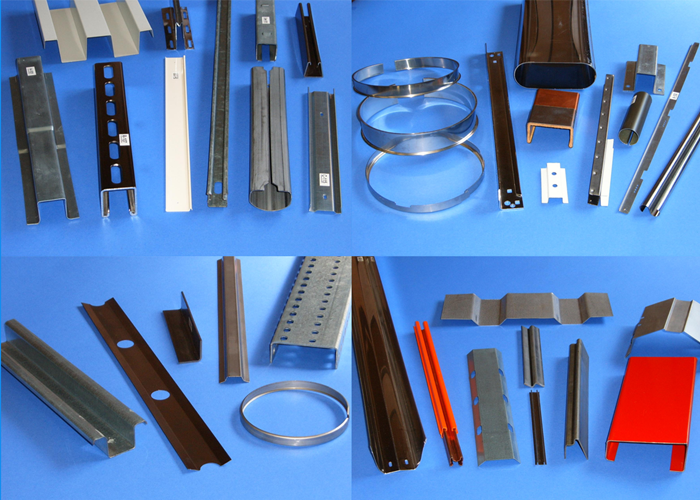

Common Shapes

0.4" x 1.3", 11 gauge roll formed weather strip channel. This channel is roll formed in corrosion resistant material such as hot dipped galvanized or Aluminized Type I or II. The pocket is open enough to accept gaskets, brushes and other weatherstripping media. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

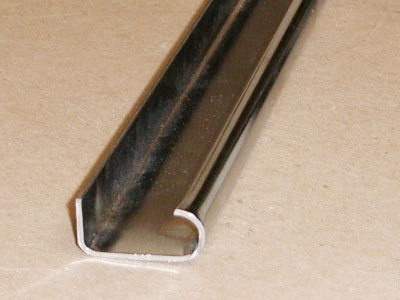

0.5" x 1.3", 16 gauge roll formed drawer run. This channel is roll formed in cold rolled steel that can be fabricated and welded with other components and later painted for cosmetic appeal. It is designed to accept roller bearings to guide a drawer. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

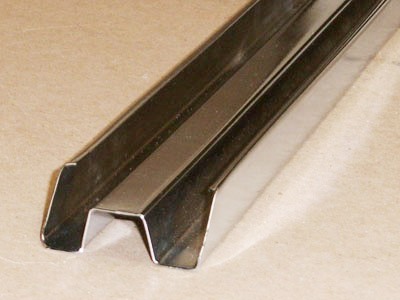

0.8" x 2", 20 gauge roll formed cement plank edging. This custom shape is roll formed to mimic the "groove" portion of a tongue-and-groove design. It provides the edging when assembled and filled with concrete. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

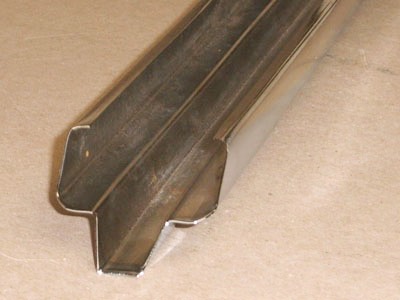

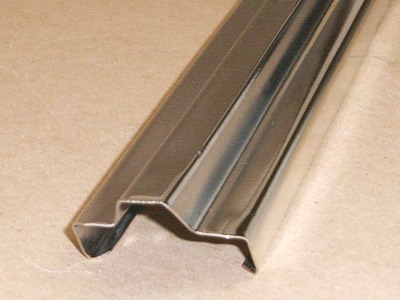

1.3" x 2", 20 gauge roll formed cement plank edging tongue profile with miter. This custom shape is roll formed to mimic the "tongue" portion of a tongue-and-groove design. It provides the edging when assembled and filled with concrete. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

1.3" x 2", 20 gauge roll formed cement plank edging tongue profile with a straight end cut. This custom shape is roll formed to mimic the "tongue" portion of a tongue-and-groove design. It provides the edging when assembled and filled with concrete. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

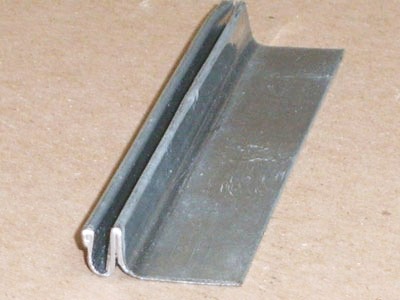

0.3" x 1.1", 24 gauge roll formed galvanized blade stop carrier. This channel is roll formed in corrosion resistant material such as hot dipped galvanized or Aluminized Type I or II. The pocket is open enough to accept gaskets, brushes and other weather-stripping media. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

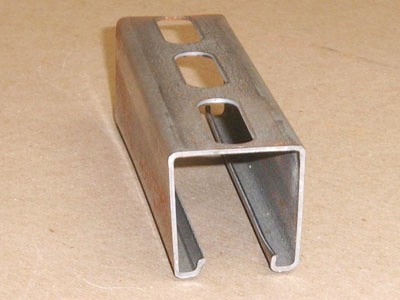

1.6" x 1.6", 16 gauge roll formed seating strut with slots. Strut channel has a variety of applications. It can be used to connect, to mount, to support, or to brace other components. It can be used to rack seating assemblies or for lightweight structural loads. Some components used in the construction industry include pipes, electrical and data wire, and mechanical systems such as ventilation, air conditioning. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

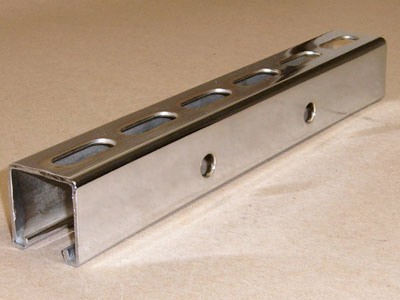

1.6" x 1.6", 12 gauge roll formed seating strut with holes and slots. Strut channel has a variety of applications. It can be used to connect, to mount, to support, or to brace other components. It can be used to rack seating assemblies or for lightweight structural loads. Some components used in the construction industry include pipes, electrical and data wire, and mechanical systems such as ventilation, air conditioning. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

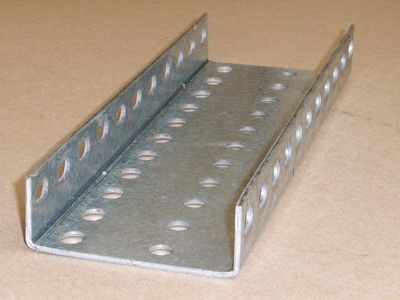

1.3" x 3.5", 12 gauge galvanized bracket with holes. This channel has a variety of applications, from connecting, to mounting, to supporting other components. It serves as a frame to hold conveyor rollers when placed back-to-back. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

14 gauge galvanized steel support strip. This part is sometimes used as a splice joint to connect other components. The material is hot dipped galvanized steel to provide corrosion resistance. Hole patterns are provided to assemble with mating parts. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

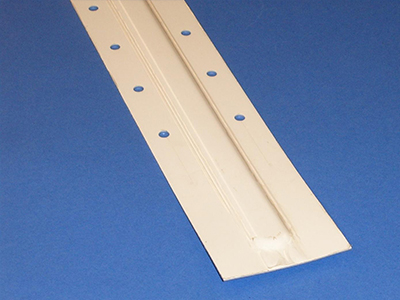

0.05" thick x 0.200" high x 3" wide pre-painted aluminum stiffener. This part is sometimes used as a splice joint to connect other components. The material is pre-painted aluminum to provide corrosion resistance. Hole patterns are provided to assemble with mating parts. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

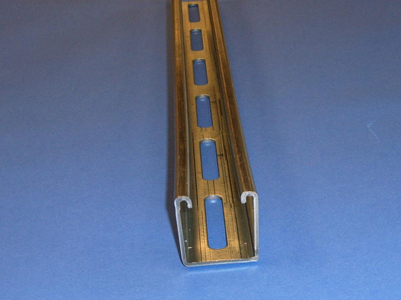

1.6" x 1.6" strut channel, slotted 12 gauge in grade 50 with g-90 hot dipped galvanized coating. Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Custom lengths are available for OEM production requirements.

0.05" thick x 0.200" high x 3" wide pre-painted aluminum stiffener with "bull nose" ends. This part is sometimes used as a splice joint to connect other components. The material is pre-painted aluminum to provide corrosion resistance. Hole patterns are provided to assemble with mating parts. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

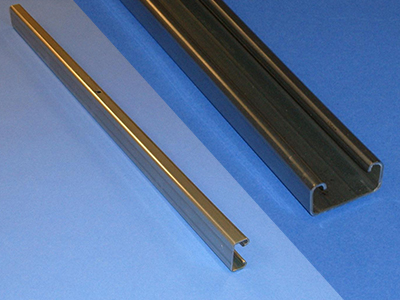

0.8125" x 1.625", 14 gauge roll formed support strut with Holes and Slots if desired. Strut channel has a variety of applications. It can be used to connect, to mount, to support, or to brace other components. It can be used to rack seating assemblies or for lightweight structural loads. Some components used in the construction industry include pipes, electrical and data wire, and mechanical systems such as ventilation, air conditioning. It can also be used to reinforce plastic moldings. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
