Zee-sections
Zee Sections (also known as Z Bars or Z-sections) are common roll formed shapes often used as, or integral to, mounting brackets, supports, purlins, tracks and slides, and reinforcements. Zee sections provide multiple surfaces for mounting, support and fastening. They are often used as trims, edgings, frames and structural components. They are found in many, many industries especially the manufacture of housing frames and metal industrial buildings. Naturally, galvanized steel is a very popular material for zee sections, but stainless, brass, copper and aluminum are also common, along with a variety of finishes and treatments.
16 Gauge Roll-formed Steel Drawer Side
1.5" x 2.2", 16 gauge roll formed steel drawer side. This drawer guide is formed in cold rolled steel with a protective coating to minimize rust until the part is assembled and painted. The profile is run in custom lengths to accommodate different drawer sizes. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

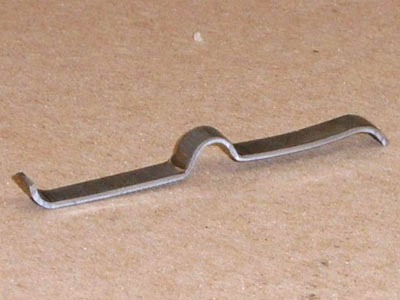

16 to 14 Gauge Roll-formed Hot-rolled Steel Shutter Blade
0.5" x 3", 16 to 14 gauge roll formed hot rolled steel shutter blade. This profile is run in hot rolled pickled and oiled steel with a rust inhibitor to facilitate welding it to other components before powder coating. This member becomes part of a damper or shutter to manage air flow and cooling. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
11 Gauge Roll-formed Hot-rolled Trailer Side
2.5" x 6.2", 11 gauge roll formed hot rolled trailer side. This profile is run in hot rolled pickled and oiled steel with a rust inhibitor to facilitate welding it to other components before powder coating. This member becomes part of the frame of a trailer. Special holes, miters and slots are possible. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

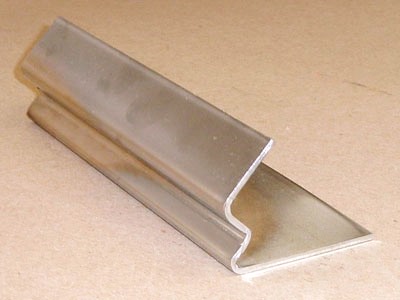

12 Gauge Roll-formed Steel Conveyor Guide
2" x 2", 12 gauge roll formed steel conveyor guide. This profile is run in hot rolled pickled and oiled steel with a rust inhibitor to facilitate welding it to other components before powder coating. This member becomes part of the frame of a conveyor. Special holes, miters and slots are possible. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

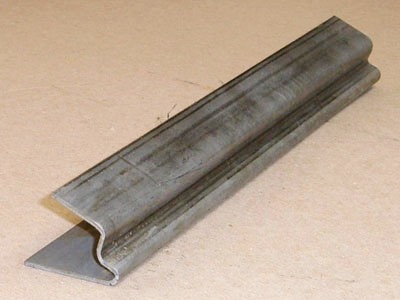

12 Gauge Roll-formed Steel Conveyor Guide
2" x 3", 12 gauge roll formed steel conveyor guide. This profile is run in hot rolled pickled and oiled steel with a rust inhibitor to facilitate welding it to other components before powder coating. This member becomes part of the frame of a conveyor. Special holes, miters and slots are possible. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.

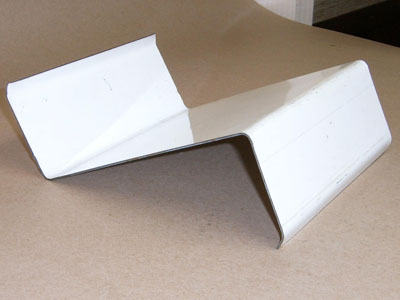

16 Gauge Roll-formed Painted Marina Purlin
5" x 8", 16 gauge roll formed painted marina purlin. This profile is run in pre-painted galvanized steel. It is commonly used as a purlin purlins are horizontal beams providing structural support in buildings. They are supported by rafters or walls. This profile serves as the visible underside of a canopy. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
12 Gauge Roll-formed Steel Conveyor Guide
1" x 1.5", 12 gauge roll formed steel conveyor guide. This profile is run in hot rolled pickled and oiled steel with a rust inhibitor to facilitate welding it to other components before powder coating. This member becomes part of the frame of a conveyor. Special holes, miters and slots are possible. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
16 Gauge Galvanized Steel Support Post
1.25" x 2.5" x 1.25", 16 gauge galvanized steel support post. This steel Zee profile is run in galvanized steel. Roll formed Z-sections are used in framing, as supports and as stiffeners. Applications are found in construction, commercial buildings and residential garage doors to mention a few. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
16 Gauge Galvanized Steel Support Post
1.25" x 2.5" x 1.25", 16 gauge galvanized steel support post. This steel Zee profile is run in galvanized steel. Roll formed Z-sections are used in framing, as supports and as stiffeners. Custom holes and slots are possible. Applications are found in construction, commercial buildings and residential garage doors to mention a few. As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
12 Gauge Hot-rolled Pickled Oiled Z-section
1.5" Z-section in 12 gauge hot rolled pickled and oiled steel. The roll formed Z-section is often used as a bracket, a support, or a wall girt. Angles are custom manufactured and can include holes and notching.as a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available for OEM production requirements.

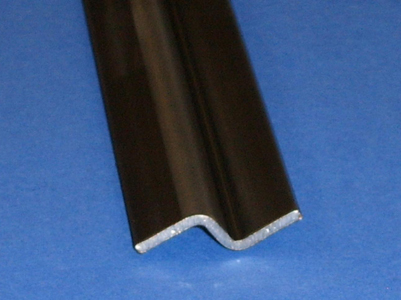

12 Gauge Hot-rolled Pickled Oiled Z-section
1.25" Z-section in 12 gauge hot rolled pickled and oiled steel. The roll formed Z-section is often used as a bracket, a support, or a wall girt. Angles are custom manufactured and can include holes and notching. .as a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available for OEM production requirements.
MP Metals specializes is roll-forming custom parts. Nothing is stock.
As a coil-based process, economical production quantities begin around 5,000 lineal feet. Custom lengths are available to meet OEM requirements.
